Description
14ml Infrared Quartz Cuvette 40mm Spectrophotometry Cuvette
| Type | Quartz Cuvette |

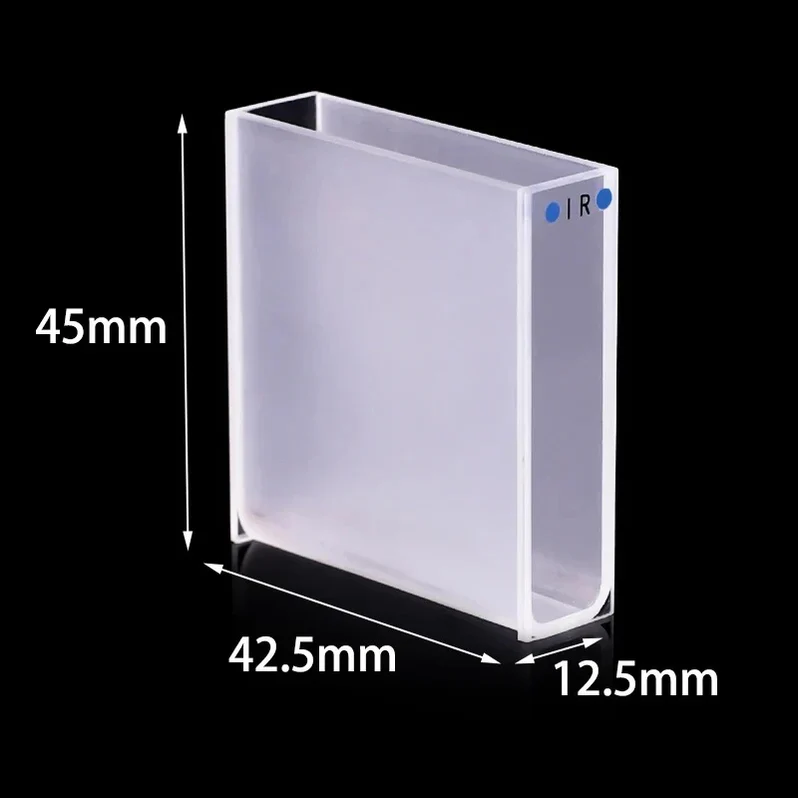

| Outline dimension(H*W*D/mm) | 45*42.5*12.5mm |
| Volume | 14ml |
| Path length | 40mm |
| Transmittance | >80%(Paired testing) |
| Wave length | 300nm-3500nm |
| Material | Japanese Quartz Glass |
| Suitable for | Laboratory Research Instruments |
| Glue Bonding Process | Made by bonding multiple glass sheets with special glue. Economical choice—not suitable for high heat or corrosive environments. |
| Frit Sintering Technology | Fused via high-temp glass powder sintering, this multi-laminated glass offers 600℃ heat resistance plus superior acid and alkali protection. |
| Stocking time | 1-7 working days |
| Delivery terms: EXW | |
| Original | MADE IN CHINA |
Three types of quartz glass with different transmittance
1、Ultraviolet quartz glass (■JGS1)，transmittance range 185nm-2500nm.
2、Visible light quartz glass (■JGS2)，transmittance range 300nm-800nm .
3、Infrared light quartz glass (■JGS3)，transmittance range 300nm-3500nm.
This product is made of(■JGS1)with excellent UV and visible light transmittance,which can be used in various specs of UV visible spectrophotometer.
Pay ATTENTION to Use Quartz Cuvette
Most of Quartz Cuvette rectangular,The bottom and two sides were made of frosted glass,the other side is optical surface.
Puting quartz cuvette contact both sides of the frosted glass or edge with fingers.To avoid contact with the optical surface.
Take it carefully to avoid breakage
The solution of corrosive glass shouldn’t be kept for long time
The maximum volume is 2/3 of the whole tube
Additional information
| size | Frit Sintering, Glue Bonding Process |
|---|
